Process cooling
Cooling Water
A cooling basin feeds a constant-head pump through a 4-inch line, necks down through a reducer, and climbs 5 m to a heat exchanger held at 240 kPa(g). The solver balances the pump head against friction, the fitting losses and the static lift.
The reducer and globe valve use Crane TP-410 auto K-factors referenced to the correct velocities — the small-bore side for the reducer, as the standard prescribes.

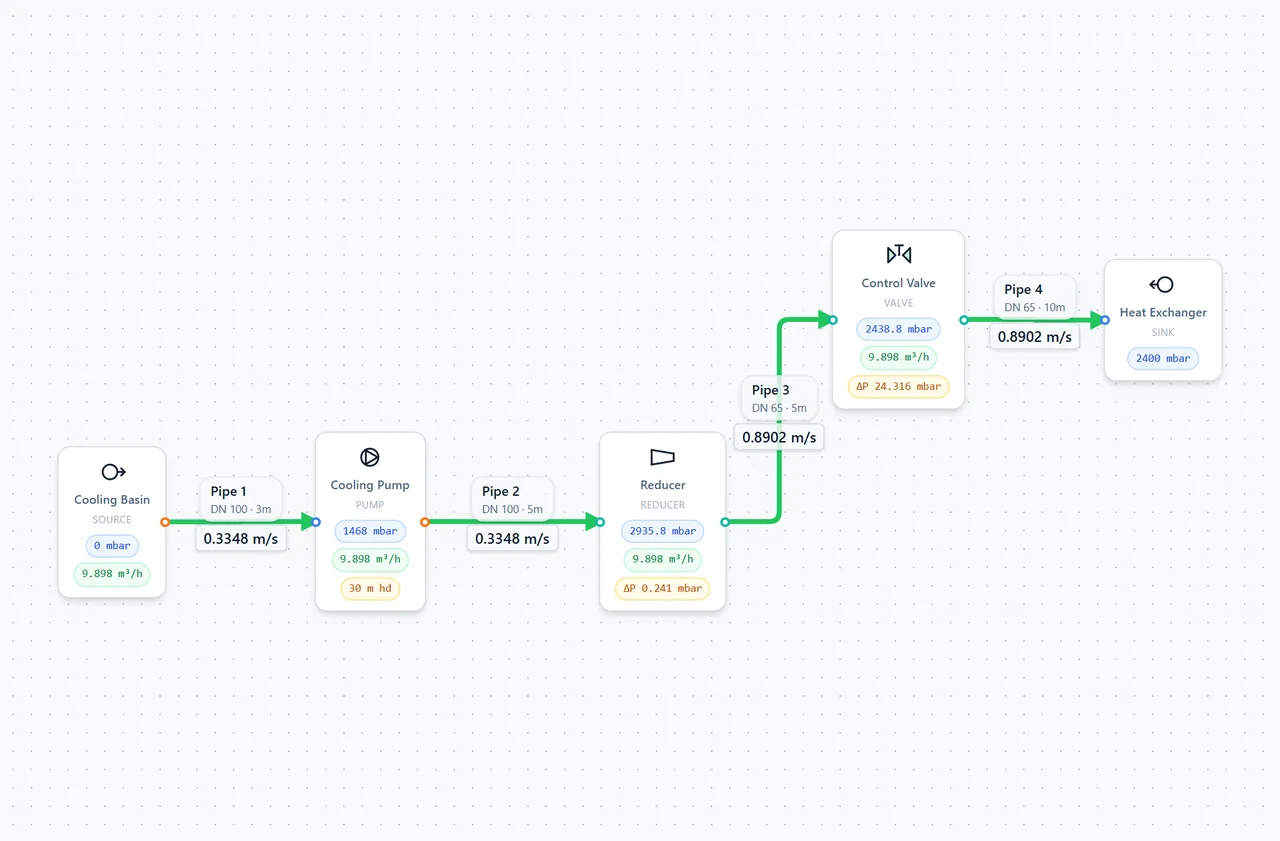

Solved results — Incompressible solver, 5 iterations
| Circuit flow | 2.75L/s |
| Heat-exchanger pressure | 240kPa(g) |
What this example shows
- Static lift + friction + fitting losses balanced against pump head
- Crane TP-410 auto-K reducer and globe valve
Explore it yourself
Open the solved model in the browser sandbox — no account needed — or create a project from this template to modify and re-run it.
